Nabertherm LT 02-13CR Sintering Oven - for cobolt-chromium

Nabertherm LT 02-13CR Sintering Oven - for cobolt-chromium
Nabertherm LT 02-13CR Sintering Oven - for cobolt-chromium
Nabertherm LT 02-13CR Sintering Oven - for cobolt-chromium
Nabertherm LT 02-13CR Sintering Oven - for cobolt-chromium
Sku: LR021H3ON
$15,988.00
Shipping calculated at checkout.
Sale {price}%

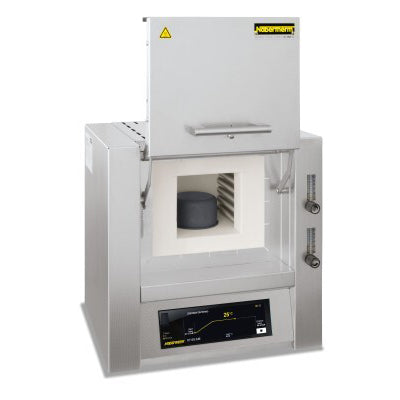

The sintering furnace LT 02/13 CR is perfectly suited for sintering of cobalt-chromium restorations. The blanks are placed in a special sintering bell and will be heat-treated under argon. The specific design in combination with sintering pearls provides for good sintering results in a nearly oxygen-free atmosphere at very low argon consumption. The system is open and can be programmed for various materials up to sintering temperatures of 1300 °C. Two pre-installed sample programs, which can be adjusted individually. Furthermore, the sintering furnace LT 02/13 CR is designed for a single-phase connection.

  • Tmax 1300 °C
  • Working temperature up to 1280 °C, depending on the CoCr material
  • Single-phase connection
  • Dual shell housing made of textured stainless steel sheets with additional fan cooling for low surface temperature
  • Exclusive use of insulation materials without categorization according to EC Regulation No 1272/2008 (CLP). This explicitly means that alumino silicate wool, also known as “refractory ceramic fiber” (RCF), which is classified and possibly carcinogenic, is not used

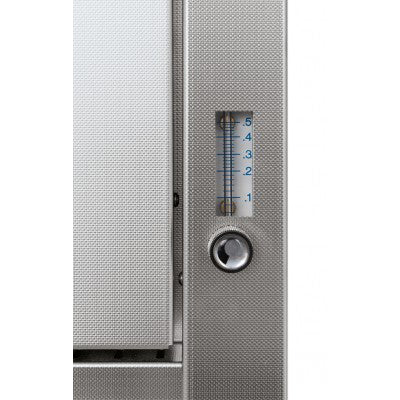

  • Gas supply system with solenoid valve and flow meter

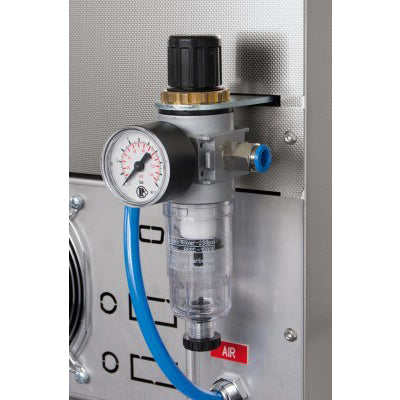

  • Forced cooling system with compressed air possible

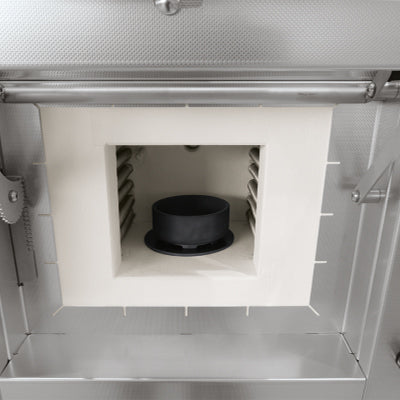

  • Sintering bell with good sealing for sintering up to 30 single crowns under argon
  • Sintering pearls, Ø 1,25 mm (200 g) included in delivery scope
  • Special tongs included in the delivery scope
  • Type S thermocouple
  • Freely programmable controller C550 allows for automatic temperature control and switching of the gas flow
  • Switching system with solid-state-relays to switch the heating
  • Possibility to set two gas quantities for optimal adjustment to the sintering process
  • Controller with touch operation C550 (10 programs with each 20 segments)
  • MyNabertherm App for online monitoring of the firing on mobile devices for free download
  • Freeware NTEdit for convenient program input via MS Excel on the PC
  • Freeware NTGraph for evaluation and documention of firings using MS Excel on the PC
  • NTLog Basic for Nabertherm controller: recording of process data with USB-flash drive
  • Defined application within the constraints of the operating instructions


** Units are assembled and shipped from Germany. Please contact us for lead time. Freight costs are approx. $250 for east coast - $360 for west coast. Freight costs will not be added at initial checkout.
