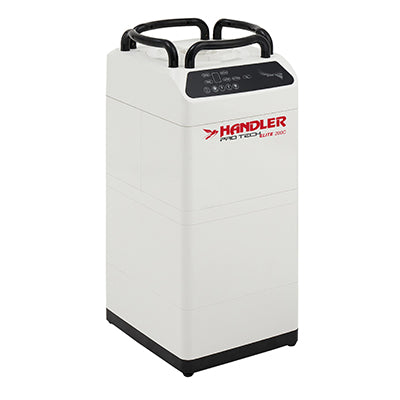

Handler Pro Tech Elite 200C Dust Extraction System for CADCAM milling machines
Handler introduces NEW technology specifically designed and engineered to support CAM milling applications.Models 100C and 200C under bench dust extraction system provides powerful 9 STAGE SUCTION to effectively remove dust from the chamber of the milling process.
These
extraction systems can be used for dry milling on materials such as
Zirconia, wax, PMMA, composite resin, PEEK, gypsum, porcelain, and glass
fiber reinforced resin.

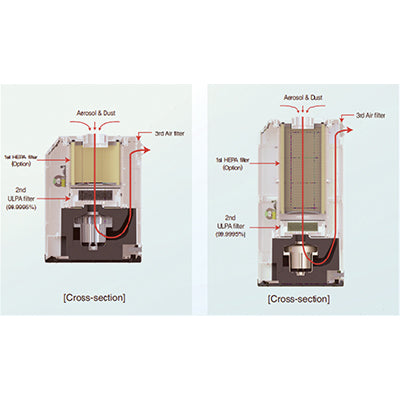

Each machine will generate maximum air flow of 150 CFM (cubic feet per minute) and maximum air pressure of 23kpa or 3.34psi. The 200C has triple
filtration system consists of a 1st stage drum cartridge HEPA filter,
2nd stage ULPA filter (99.9995% up to 0.12 um) and 3rd stage air filter
for maximum protection and clean work environment.These
dust collectors come complete with motor, digital keypad control with
filter replacement indicator, dual or triple filtration system, suction
hose, CAM cabling interface and power cord.Accessories and optional CAM cabling is available.Some assembly required and may need adaptors to secure the suction hose to the milling machine.
The
filter replacement notification informs you when to replace (clean) by
measuring the pressure in the suction part by the pneumatic sensor.
Also, the replacement (cleaning) cycle of the filter may vary depending
on the usage. It is recommended to change the 3rd filter together when
replacing the 1st filter.
Comes with cabling to connect to your mill - please specify your mill in the order notes during check out.
Specifications: 11.3” W x 11.6” L x 29” H
Machine operates at 100V – 120V, 50/60Hz, 1200W +/-5%, single phase AC plug, 5.2A, 55dB.Unit weight is 30 pounds.
