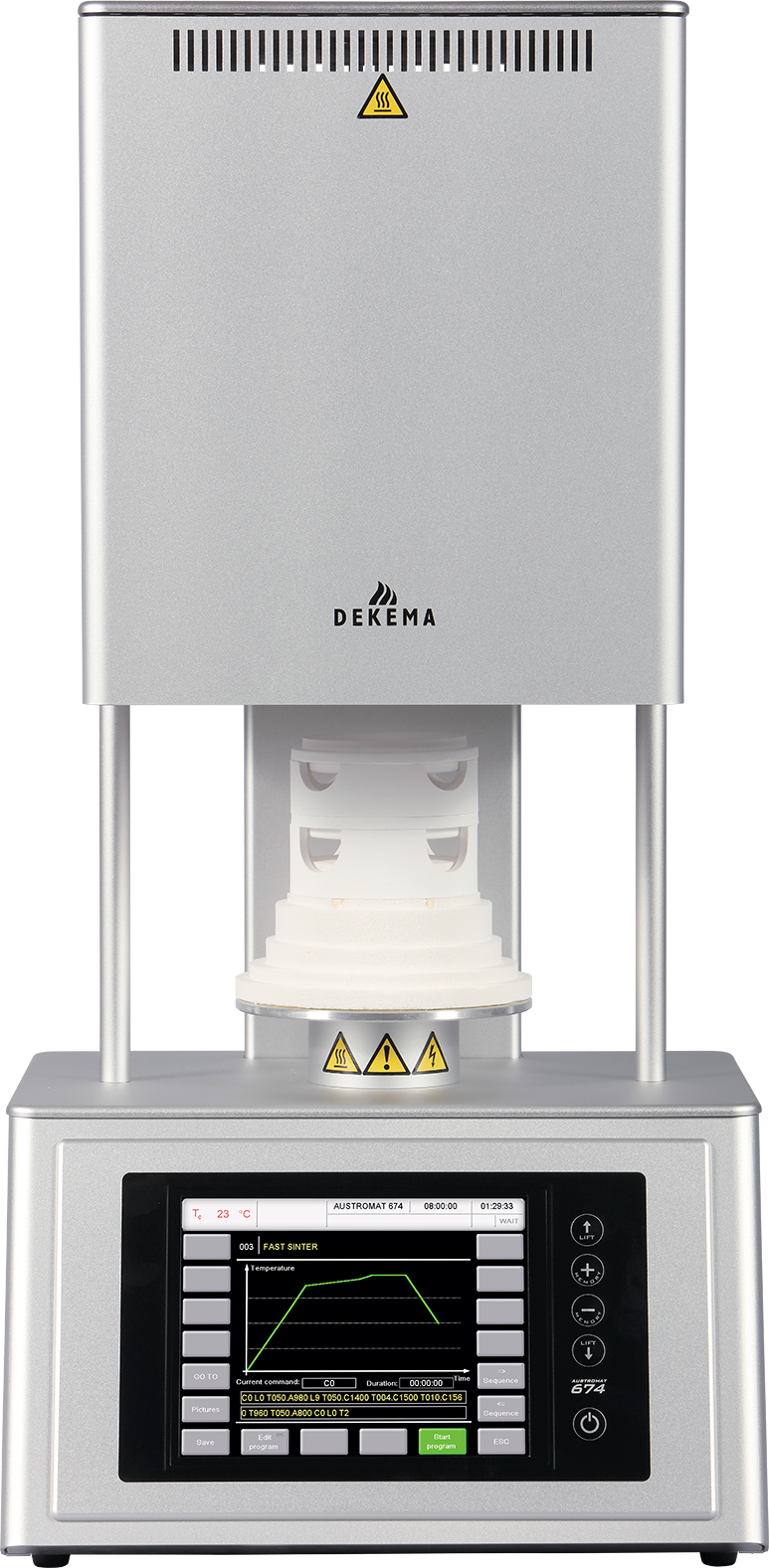

DEKEMA AUSTROMAT 674 Sintering Oven

DEKEMA AUSTROMAT 674

The 674 merges user-oriented operation, short sintering cycles, low energy consumption, Dekema's SiC heating technology, and a compact foot print into a user-friendly sintering oven. Approximately 40 copings or restorations with up to six units can be reliably sintered within its chamber. Approximately 20 copings with a max diameter of 100mm can be simultaneously sintered on top of the insulation table, providing additional sintering capacity. Dekema's AUTODRY system has been further improved, providing both precise drying steps as well as quick and direct heating/cooling steps for shorter sintering cycles.

The high-temperature 674 sintering furnace is equipped with two silicon carbide heating elements to safely and consistently operate at temperatures up to 1530°C. All components of the 674's chamber are made of durable materials of the highest purity to help ensure homogeneous heat distribution in a clean atmosphere. The 674's patent-pending platinum/platinum-rhodium thermocouples monitor the chamber's temperature.

• 1530°C
• Sinter, glaze, and crystallize under atmosphere
• Chiarside speed mode
• Space for all common bridge sizes or up to 40 units in one level (100mm diameter)
• Optional accessories to sinter in two levels
• Interface: USB
• 230V

Scope of delivery: AUSTROMAT 674, 1 x power cable, 1 x insulation table, 1 x sinter ring, 1 x sinter plate, 1 x tweezer, 1 calibration set

Dimensions of oven: 383mm x 780mm x 373mm (W x H x D), 52.9 lbs. Chamber dimension: 100mm x 50mm

Important: This item is ordered from the manufacturer at time of purchase. Lead times can vary. Please contact us for a delivery time prior to ordering if oven is needed by a specific date. Item is shipped via air freight from Germany.
