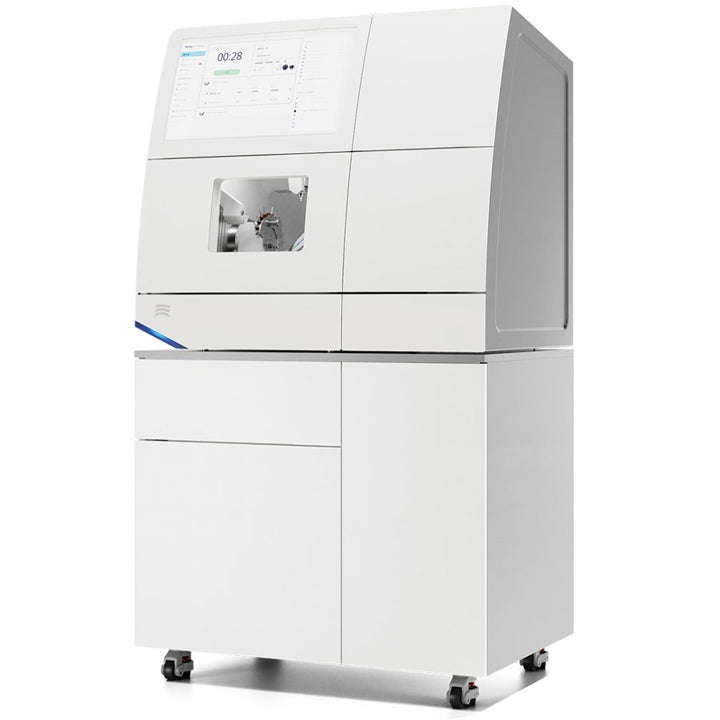

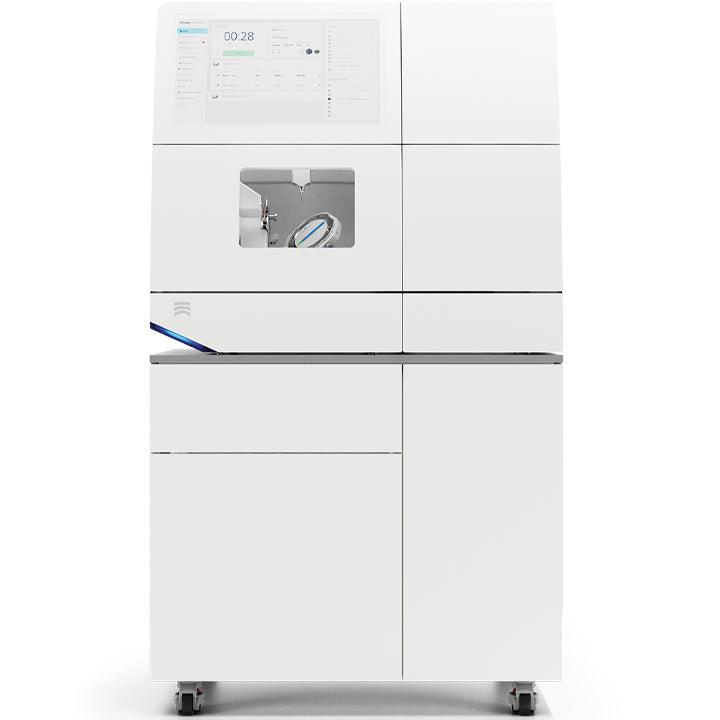

Amann Girrbach Ceramill Matron

Amann Girrbach Ceramill Matron
Amann Girrbach Ceramill Matron
Sku: 181371

Serious Fun

Its extraordinary product features make the Ceramill Matron stronger, faster and smarter – offering maximum ease of use and simply being more fun to work with.

The Ceramill Matron is the perfect product for everyone wishing to advance the digitization of their prosthetic workflows and who have the highest demands for quality, cost-effectiveness and enjoy exercising their craftsmanship.

The robust, high-performance design with its improved stiffness and Vmax arm makes Ceramill Matron a unique asset in the field of metal processing: mill CoCr and titanium in-house at unique speed and precision - without the long distances to and from the milling center.

The large, modern 21.5" touch display of the Ceramill Matron and the user-oriented workflow user interface guide you safely through all the processes and provide you with optimum support in your everyday routines.

The magnetic, RFID-supported 11-tool carrier (SnapMag) and 8-fold blank changer make handling simplicity in itself. Pre-loaded SnapMags can be replaced in seconds via Plug&Play for assignment without any additional effort.

Technical Data

Compatible with plastic, metal, ceramics, hybrids and zirconia

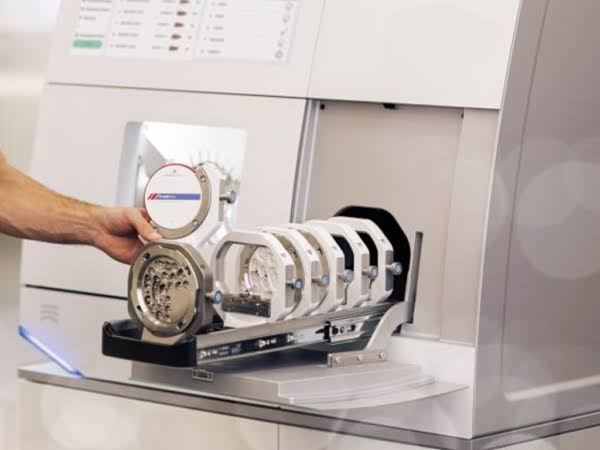

Retractable 8-fold blank changer, RFID supported
Industrial zero point clamping system
HD camera for assistance in support cases
Highly stable machine design with Vmax arm
5+3-axis control for controlling the mechanics
21.5" curved touch display with guided workflows
Min. compressor requirement: 50l/min at 6 Bar
Dimensions (DxWxH): 696 x 940 x 850 mm
Weight: 150 kg
Power consumption: 220 W
High-performance power spindle: 80.000 rpm & 1.37 KW power

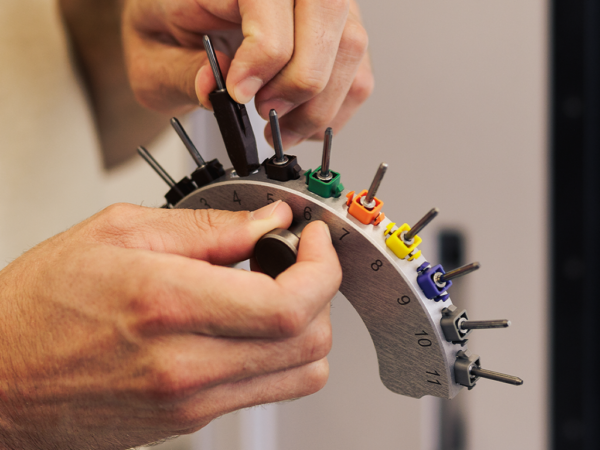

SnapMag with 11-fold tool management

Interested in a quote or obtaining more information? Please fill out this form, or call us at 214-461-5618
