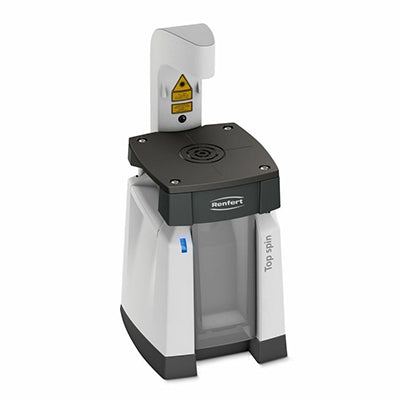

The Top spin provides the advantages of precision, reliability and
durability. We have been successful in greatly increasing the previous
level of quality. You will be fascinated by the unique concentricity,

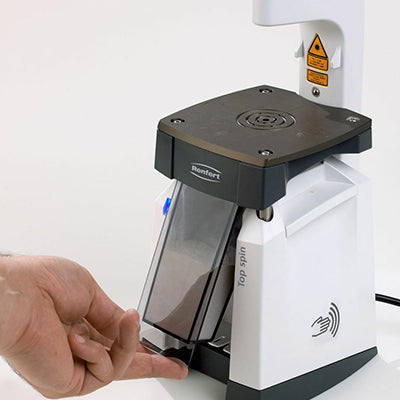

special drill technology and unparalleled dust protection.
Details

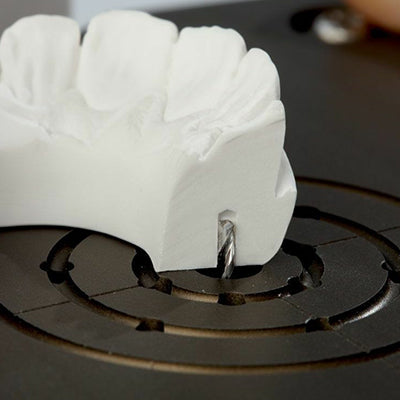

- Two unit positions and different gripping options for fixing the
dental arch in position enable an individual, ergonomic working posture.
- The individual, infinitely variable drill-depth setting of 0–20 mm
(0–0.79") also allows drilling for pin systems with resin plates.

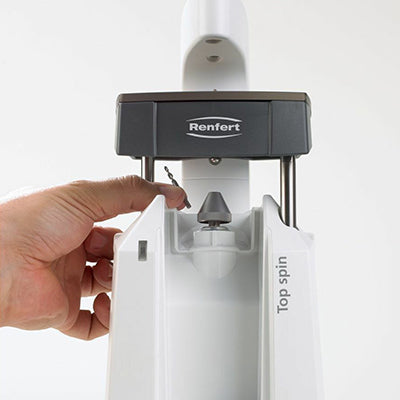

- With adjustment it is also possible to use drills with a longer shank.
- Compact design with a high degree of stability.
Scope of delivery: Top spin 100-120 V, 1x Stepped pin drill bit large
|
Name
|
Top spin, 120-240 V
|
Top spin, 100-120 V
|
|
Article number
|
18400000
|
18401000
|
|
Permissible mains voltage
|
100–240 V
|
100–240 V
|
|
Permissible mains frequency
|
50/60 Hz
|
50/60 Hz
|
|
Power consumption (during drilling)
|
12 W
|
12 W
|
|
Power consumption (Stand by mode)
|
0,7 W
|
0,7 W
|
|
Laser-Class
|
2
|
2
|
|
Rotational speed
|
8000 1/min
|
8000 1/min
|
|
Dimensions (W x H x D)
|
153 x 330 x 175 mm
6.0 x 13.0 x 6.9"
|
153 x 330 x 175 mm
6.0 x 13.0 x 6.9"
|
|
Permissible drill shaft diameter Ø
|
3 mm (± 0.03 mm)
|
3 mm (± 0.03 mm)
|
|
Permissible drill length
|
34–46 mm
1.34–1.81 "
|
34–46 mm
1.34–1.81 "
|
|
Weight
|
~4 kg
~8.8 lbs
|
~4 kg
~8.8 lbs
|
