Description

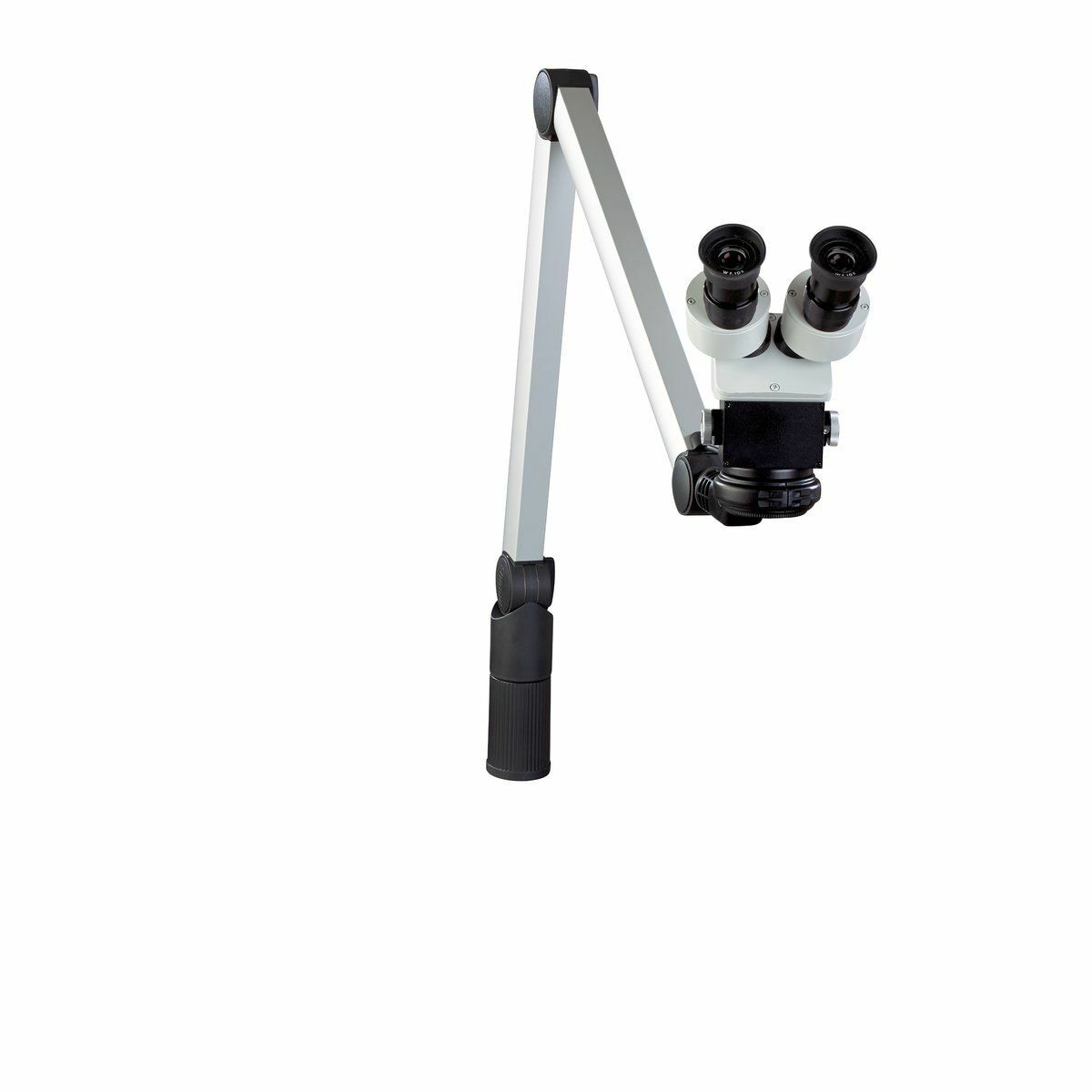

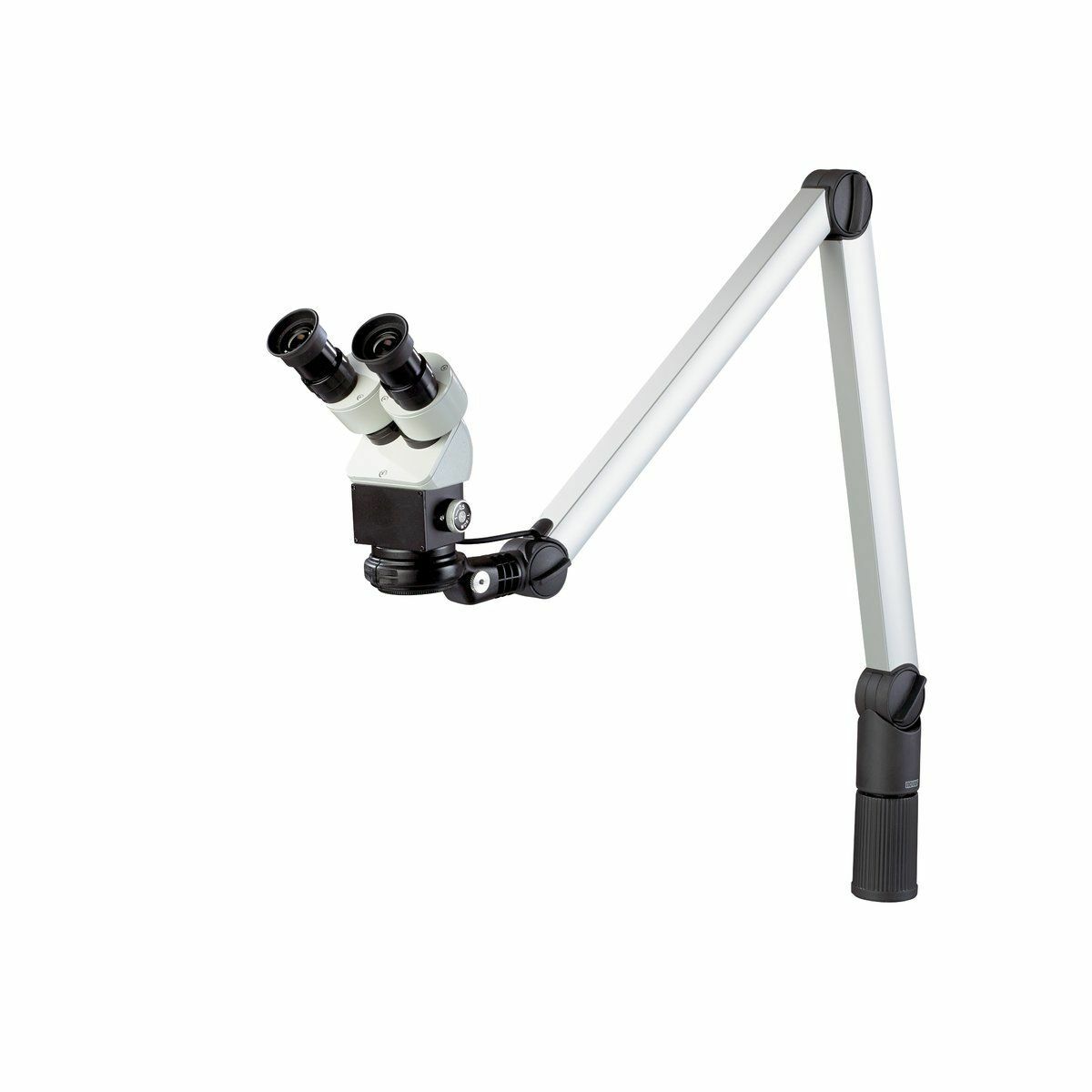

Renfert Mobiloskop S Microscope

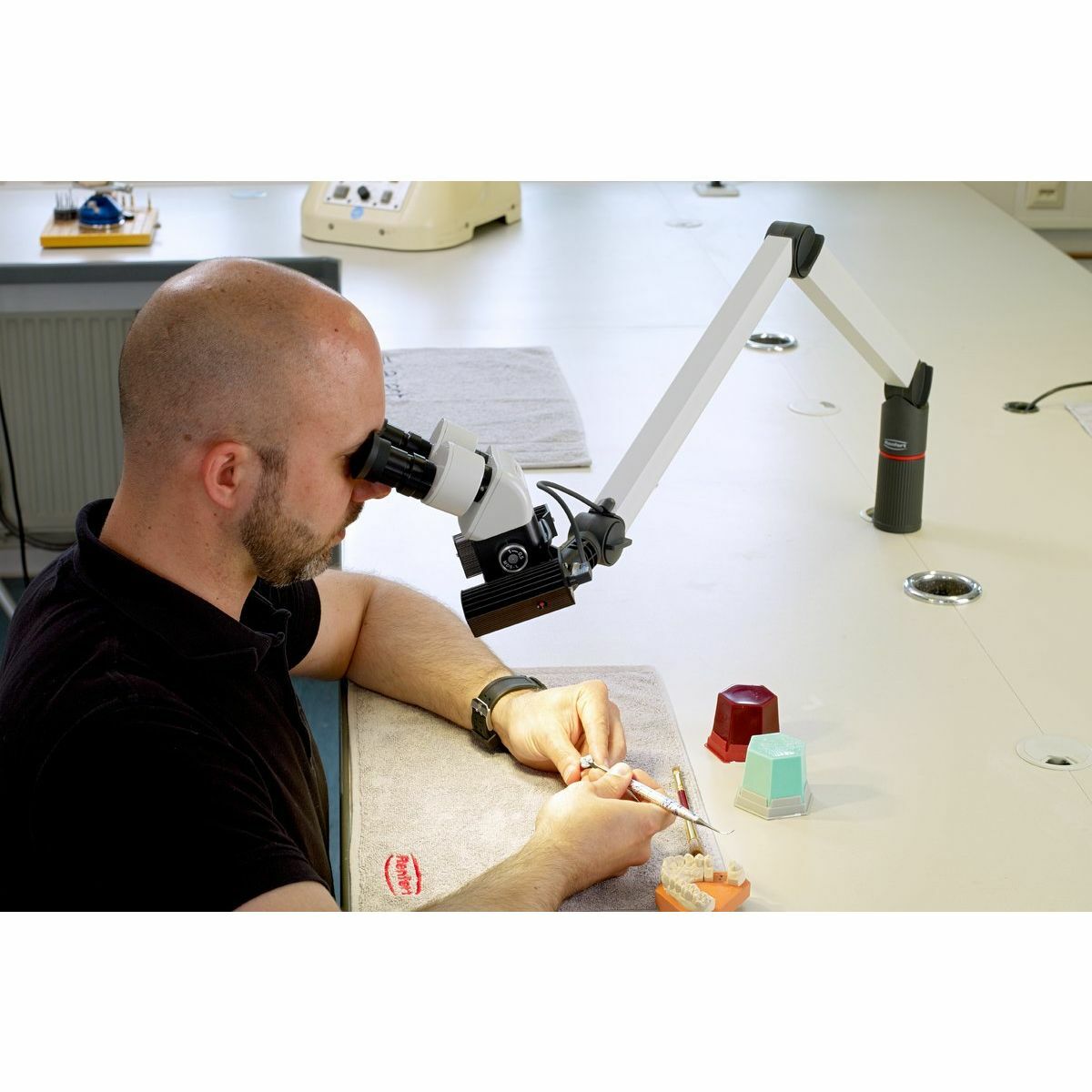

One microscope for up to 4 workplaces! The 360°
swivel-mounted support arm allows a single microscope to be utilized
from several workplaces for detail control and precision work.
Advantages
- 5 and 10 times magnification provides maximum precision.
- Distortion-free coupled with uniform sharpness in the entire viewing field.
- Large viewing field with a high depth of focus and marginal detail.
Details
- Ergonomic and relaxed seating position thanks to the high working position of 150 mm.
- Dioptric compensation enables a three-dimensional view.

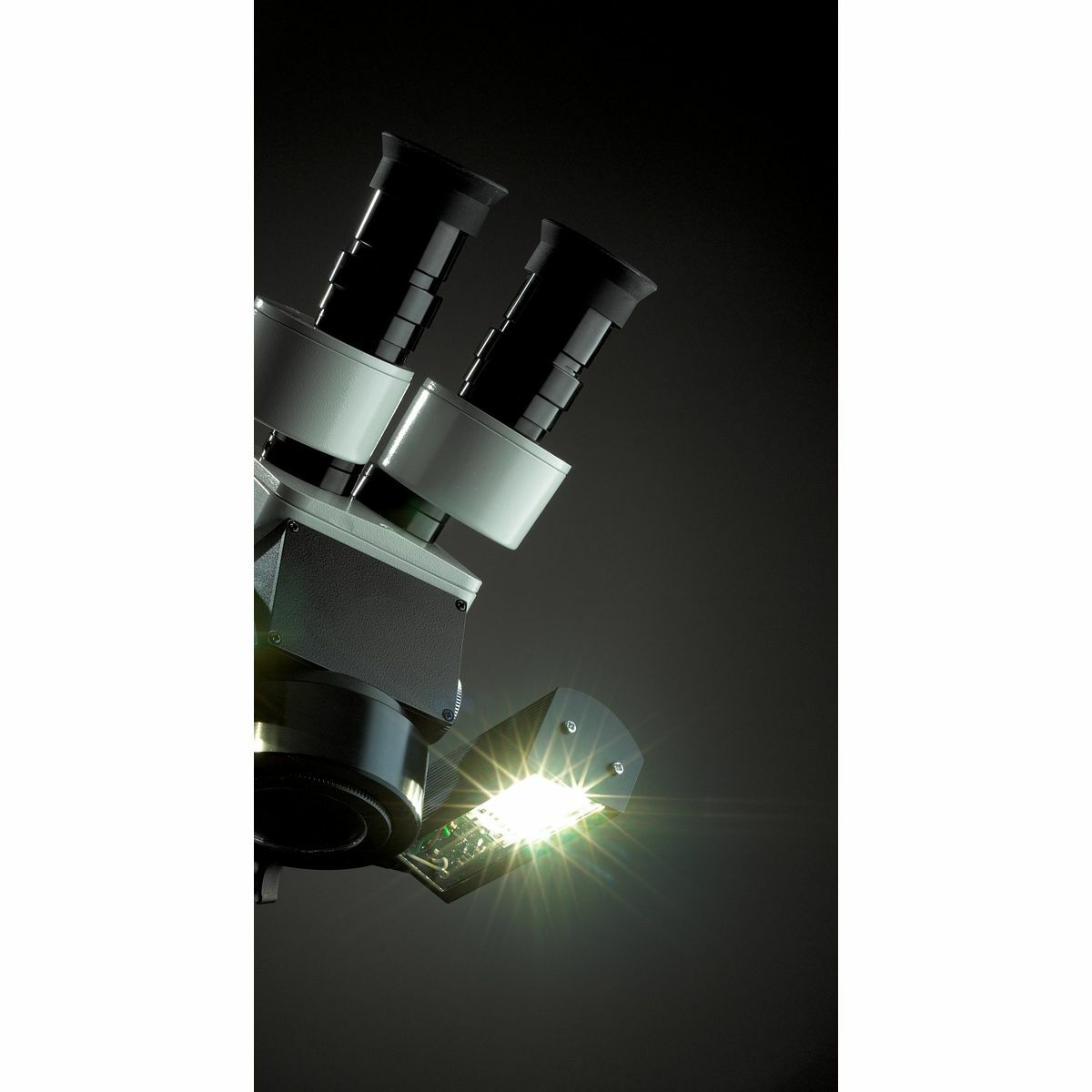

- Includes: LED-illumination with 9,000 Lux/18 white light LEDs.
Scope of delivery: Mobiloskop head, LED lighting kit, support arm (incl. stand with universal clamp)
|
Article number
|
22005010
|
|
Magnification
|
5 x | 10 x
|
|
Light beam (angled)
|
45 °
|
|
Field of vision Ø
|
44 mm (5 x) | 22 mm (10 x)
1.734 " (5 x) | 0.867 " (10 x)
|
|
Focussing depth
|
22 mm (5 x) | 10 mm (10 x)
0.867 " (5 x) | 0.349 " (10 x)
|
|
Working distance
|
150 mm
5.9 "
|
|
Action radius of swivel arm
|
850 mm
33.5 "
|
|
Table top thickness (with universal clamp)
|
18–74 mm
0.71–2.92 "
|
|
Table top thickness (with screw clamp, max.)
|
26 mm
1.02 "
|
|
Weight (incl. swivel arm)
|
~1,8 kg
~4 lbs
|
