Description

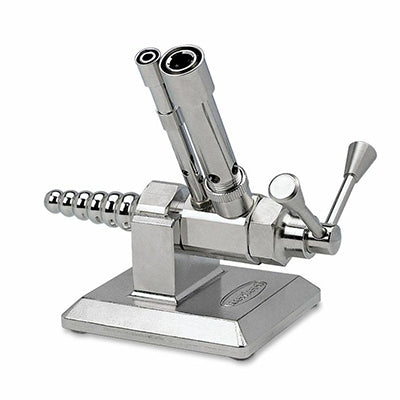

Renfert Bijou 90 Bunsen Burner
Bijou 90 is a two-tube burner for use with liquid gas and natural gas E.
Details
- Two riser tubes provide the choice of flame intensity.
- Individual adjustment of the gas supply (rocker lever) and oxygen supply (adjustment wheel).
- Tested quality and safety thanks to the DIN-DVGW type-examination certificate according to DIN 30665–1.
|
Name
|
Bijou 90
|
Bijou 90
|
|
Article number
|
9600000
|
9610000
|
|
Height (depending on the angle)
|
102–109 mm
4.02–4.29 "
|
102–109 mm
4.02–4.29 "
|
|
Rated output
|
660 W
|
660 W
|
|
Connection hose (norm)
|
DIN 30664
|
DIN 30664
|
|
Connection pressure
|
50 mbar
|
20 mbar
|
|
Ø (Nozzle)
|
0,34 mm
13.4 mil
|
0,55 mm
21.7 mil
|
|
Consumption
|
48 g/h
1.69 oz/h
|
63 l/h
2.2 ft³/h
|
|
Ambient temperature max. (Ambient temperature max.)
|
40 °C
104 °F
|
40 °C
104 °F
|
|
Dimensions (W x H x D)
|
100 x 109 x 60 mm
3.94 x 4.29 x 2.36"
|
100 x 109 x 60 mm
3.94 x 4.29 x 2.36"
|
|
Weight
|
~530 g
~18.7 oz
|
~530 g
~18.7 oz
|
