Description
Ray Foster Dry Model Trimmer, together with Ray Foster Cyclone Dust Collector, is a completely self-contained model trimming system. It can be placed in any space available location, as there is no need to connect to your water supply and it does not require a drain.

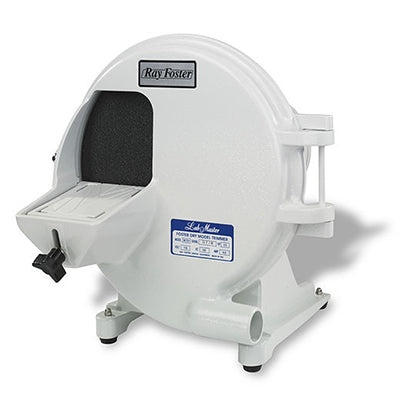

Model MTD1
Dry Model Trimmer
Features
- Rigid cutting surface gives a flat, smooth finish
- Simplified mechanics (no pulleys or belts) results in a smooth running, quiet machine
- Power output connection for automatic on/off of dust collector
- Uses fast cutting 10” diameter PSA abrasive discs
- Heavy-duty, capacitor-start, 1/3 HP motor
- Adjustable work table
- Six foot vacuum hose and three additional abrasive discs included
- Proven Ray Foster quality and durability
Specifications
- 14” high, 14” wide, 15” deep
- 115 volt, 60 Hz standard
- 230 volt, 50/60 Hz optional for export
- Wheel size 10” diameter
- 1-1/2” O.D. suction connection
- Net weight 35 lbs, shipping weight 40 lbs
