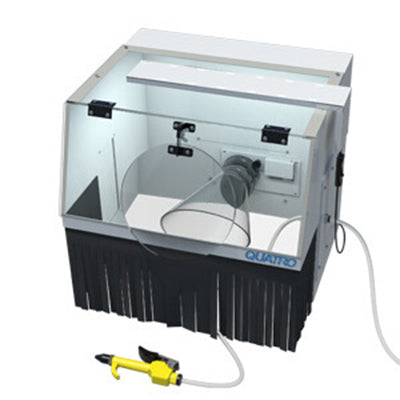

Quatro Milling AirBox

Quatro Milling AirBox
Compressed air, LED Magnifier, Dust Collector Ready

Connects to dust collector / purifier via 3" inlet (1.5" , 2" , 2.5", and 4" inlets also available, please specify in order notes).

Connects to dust collector via 1.5 in diameter hose
Item #: 2-0058-0010 (1.5 in diameter inlet, no valve)
Item #: 2-0058-0011 (1.5 in diameter inlet, ASV included)

Dimensions (HxWxL): 15x15.5x14.25 in (38x39x36 cm) · Shipping Weight: 17 lb (8 kg)
Electrical: 100-120 V, 50/60 Hz, 0.3 A

• LED Illuminated workbench containment cabinet
• Eliminates debris from breathing zone
• Blow out and capture debris with ultimate flexibility
• Easy connection to dust collector and compressed air line
• Compressed air line can be attached to either side of the cabinet
• Bright LED lights to illuminate the cabinet
• Hinged magnifier (7 in diameter, 2X magnification factor)
• Adjustable source capture nozzle for efficient removal of fine particulate
• Variable flow compressed air accessories* included: air gun, valve and tubing
• "Push-to-connect" fitting for 1/4" diameter compressed air line
• * ASV option: when used with appropriate QUATRO units, remotely starts-stops dust collector while you open-closed the valve
