Description

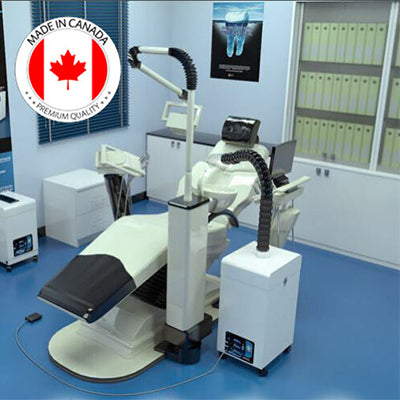

Recommended applications for the Quatro MedEVAC A: Oral aerosol partical collection, chair-side aerosol suction, dental suction, extraoral suction. Ideal for hygiene applications. The MedEVAC A will limit exposure to the operator with collected particles contained within filter bag and HEPA filter. Filter bag features a peel-off adhesive backed cover to seal the filter for disposal.

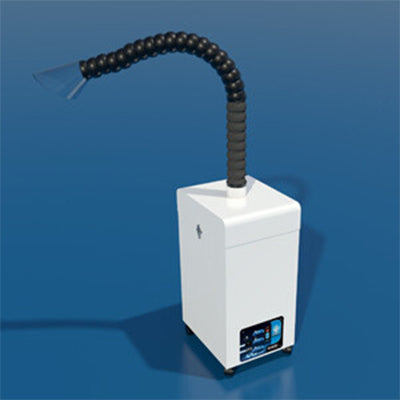

Includes foot switch for remote operation, 8" mouthpiece, 36" long capture arm. The arm is made of a 12" non-flexible support tube, with 24" of flexible length.
Specifications:
- Operating dimensions (WxDxH): 12.5x15.5x26.5” / 318x394x673 mm
- Operating weight: 60 lbs / 27 kg
- Shipping dimensions: UPS: 18x20x29” / 457x508x737 mm
- Shipping weight: 60 lbs / 29 kg
- Blower free air: 17556 l/min (620 CFM)
- Nominal operating air flow: 4247 l/min (150 CFM)
- Maximum blower pressure: 746 Pa ( 3” w.c.)
- Electrical requirements: 120V, single phase
- Power cord: Medical approved, type SJT
- Current draw: 2A (at 120V)
- Power consumption: 200W
- Digital variable speed control: Yes
- Audible alarms: Yes
- Visual alarms: Yes
- Remote operation ready: Yes, foot-switch included (#AA175)
- Source capture arm: ESD Eafe Flex and Stay, 36” long
- Source capture nozzle: Transparent plexi, 8” diameter
-
Filtration system: 2-stage
- Pre-filter: 2” deep, pleated MERV8 (#F071/BX, box of 6)
- HEPA filter: 6” deep, individually certified and tested HEPA filter 99.97%* (#F475)
- Quality control: electrical, air flow, mechanical and leak (POA aerosol generator and photometer) testing
Replacement filters & parts
Pre-filter 6-pack: #F071-box
HEPA filter: #F475
Remote operation foot pedal: #AA175
