Amann Girrbach Artex CPR

Sku:N/A
$1,358.50
Shipping calculated at checkout.
Sale {price}%

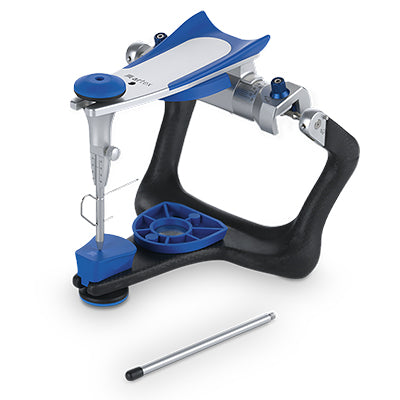

Artex articulators in Arcon design based on the human anatomy. The condylar balls are therefore in the lower member of the articulator and condylar guidance surface in the upper member. The condylar guidance elements can be adjusted using individual positioning registrations.

Optional set-up kit includes calibration key (#216010C), Splitex carbon plate set (#216100C), 100-pack of black counter plate (#216235), and 100-pack of retention discs (#216150)

  • Semi-adjustable Arcon articulator with 3 non-tip working positions
  • High-precision and robust centric quick lock via mechanically guided semi axis
  • Arbitrary pins for direct transfer with the Artex facebow
  • Adjustable inclination of the condyle track inclination from -20° to +60°
  • Distraction permitting release of compressed mandibular joints from 0 to 3 mm
  • Arcon clip prevents separation of upper and lower articulator parts while centric is open
  • Bennett angle adjustable from -5° to +30°
  • Infinitely variable retrusion, can be set from 0 to 2 mm
SCI (Sagittale condylar inclination) -20° to +60°
Bennett-angle -5° to +30°
Protrusion -
Retrusion 0 to 2 mm
ISS (Immediate Sideshift) -
Distraction 0 to 3 mm
Centric Design Centric click
Upper and lower articulator arms prevented from coming apart inadvertently in open centric by Arcon-Clip
Arbitrary pins for direct transfer wth Artex facebow yes
