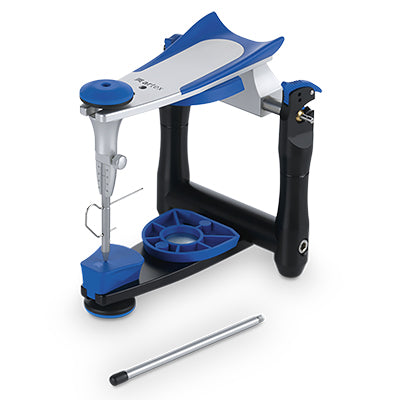

Amann Girrbach Artex BN

Shipping calculated at checkout.
Sale {price}%

A feature of Artex articulators in non-Arcon design is their reliable and easy handling. In contrast to Arcon design articulators, the condylar ball is in the upper member of the articulator and the condylar guidance surface is in the lower member. The anatomy of the patient is thus “turned on its head”, whereby upper and lower members of non-Arcon articulators form a single unit, even with opened centric.

Optional set-up kit includes calibration key (#216010C), Splitex carbon plate set (#216100C), 100-pack of black counter plate (#216235), and 100-pack of retention discs (#216150)

  • Precise functional components made from aluminium and stainless steel
  • Integrated magnetic mounting plate system
  • Fixed condyle with a 19 mm path radius
  • Fixed average sagittal condylar path inclination of 35°
  • Fixed Bennett angle of 15°
  • “Click” – quick centric lock
SCI (Sagittale condylar inclination) 35°
Bennett-angle 15°
Protrusion -
Retrusion -
ISS (Immediate Sideshift) -
Distraction -
Centric Design Centric click
Upper and lower articulator arms prevented from coming apart inadvertently in open centric by Centric plate
Arbitrary pins for direct transfer wth Artex facebow no
