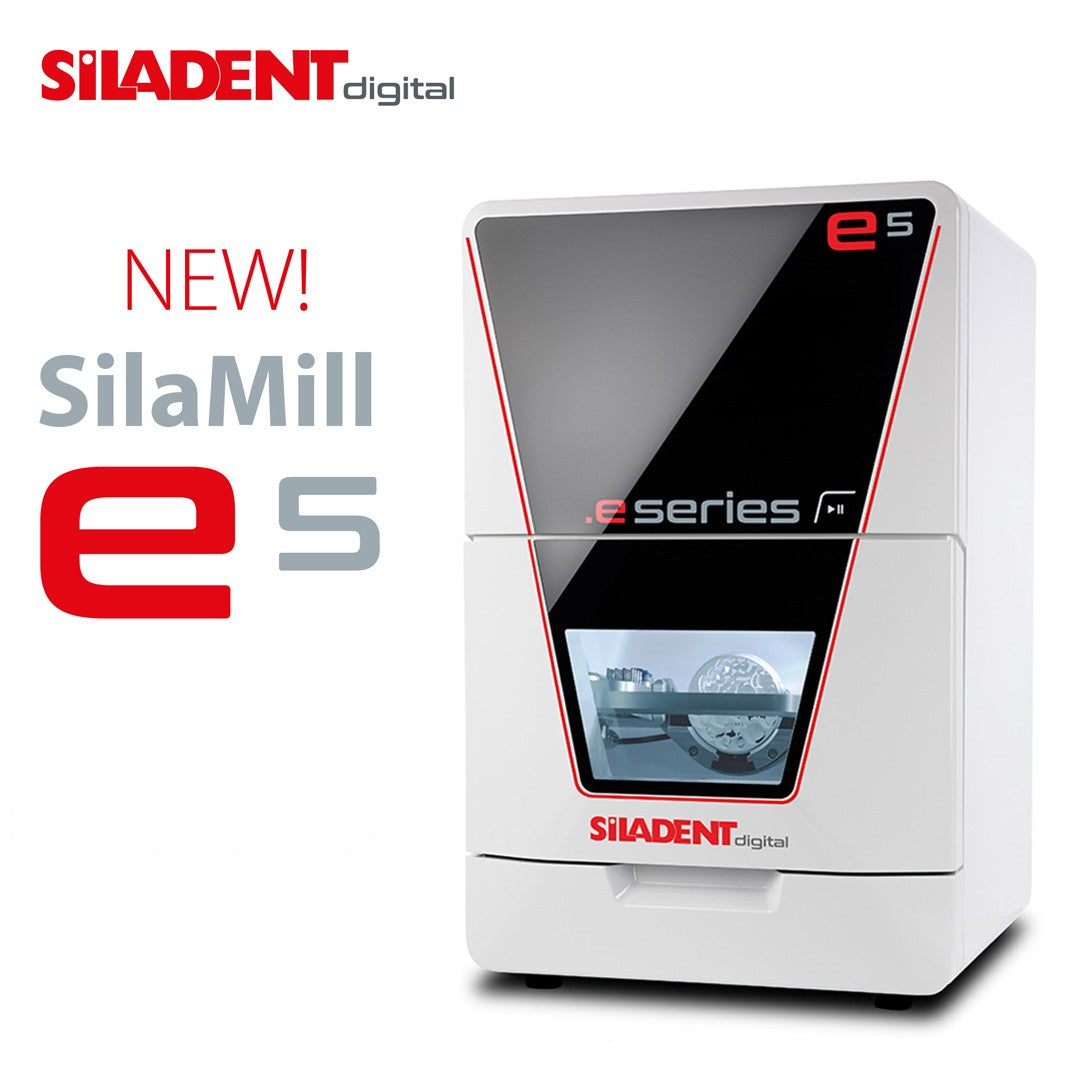

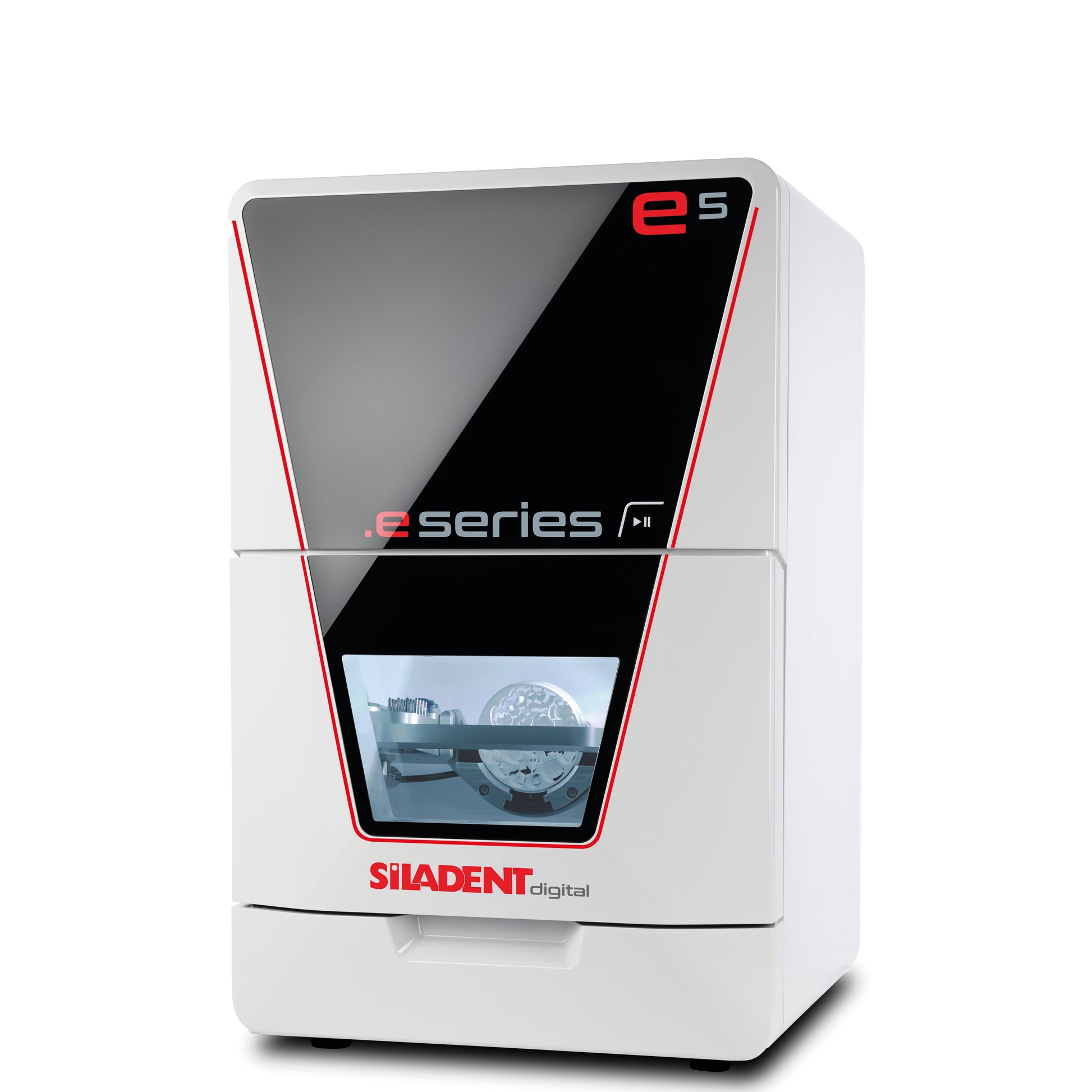

5-axis Dry Mill with EASE.
The SilaMill E5 does not require a compressed air line making installation convenient! You also benefit from minimal operating costs with modern features such as a C-Clamp, 17 Tool Automatic Changer and Auto Calibration.
The open system architecture of the E5 fits perfectly into your workflows.
The integrated CAM software enables you to get started right away!
Plug & Mill: Unpack, connect, start milling!

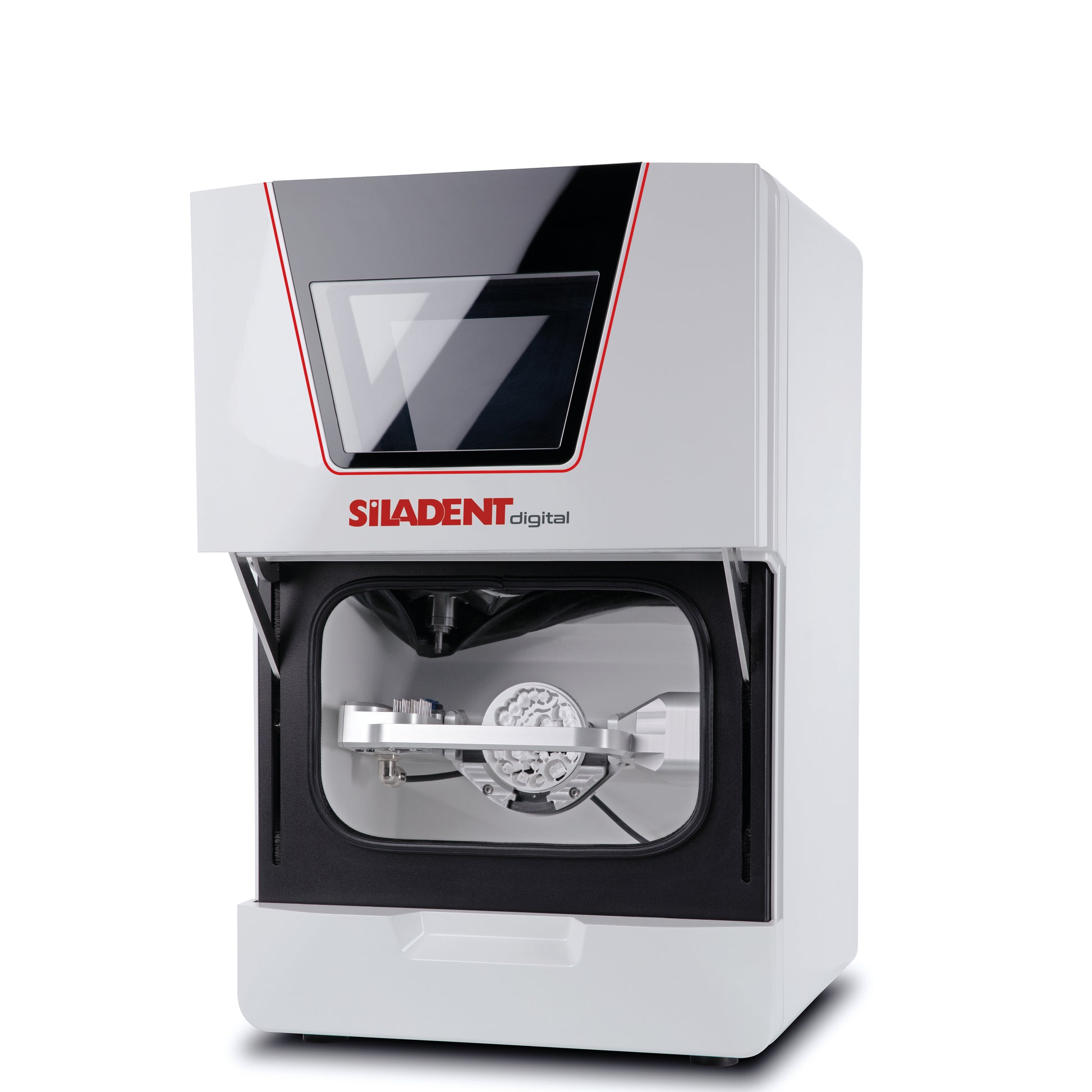

Despite its compact design, the SilaMill E5 offers a spacious working chamber for loading work and tools.
The SilaMill E5 was developed with an optimized weight of only 43kg (95lbs) and is manufactured with only the highest quality industrial components allow it to achieve impressive, first-class results with ease!
Materials: Composites, plastics/wax, zirconia, CoCr sintered metals
• Discs, height 10–40 mm, diameter 98.5 mm
• Blocks up to 40 × 20 × 20 mm (block holder required)
Indications: Crowns, bridges, inlays, onlays, veneers, occlusal splints, full dentures, denture frameworks, implant bars, abutments, screw retained crowns, screw retained bridges, surgery guides, primary crowns, secondary crowns, model plates, model tooth dies
Holder systems: Holder for 98.5 mm discs (integrated) · holder for 110mm discs (optional) · block holder (optional) · Ivotion1 accessory kit (optional)
CAM Software: DENTALCAM software included
Accessories: Spindle service set · calibration set incl. stirrup measuring screw · tool magazine insert (1 piece), Torx wrench set · torque driver 1.5Nm · AIRTOOL for PMMA/wax · drill bit (tool positions) cleaning brush and microfiber cloth · Administrated Tool Board for tool storage · power cable · Ethernet cable
Installation Service by Garland Dental Services: We provide certified technicians, trained by vhf and Siladent to ensure proper installation. We will make sure we answer questions and train your staff on usage and maintenance.
