Dreve Sonic CS+ 3D Printer

Dreve Sonic CS+ 3D Printer
Dreve Sonic CS+ 3D Printer
Dreve Sonic CS+ 3D Printer
Sku: 4700
$4,882.00
$5,382.00
Shipping calculated at checkout.

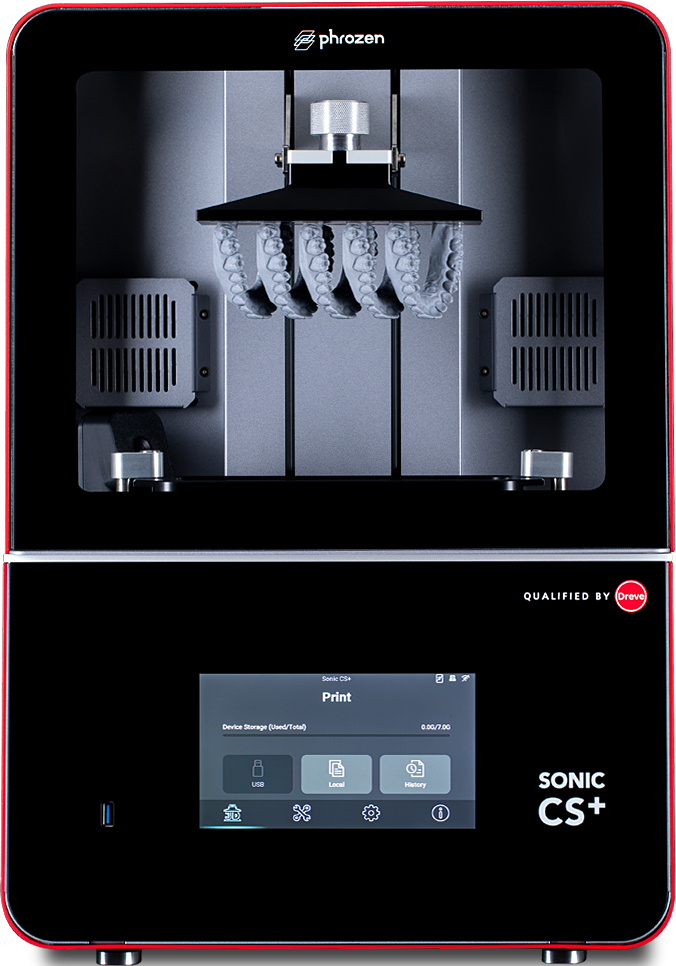

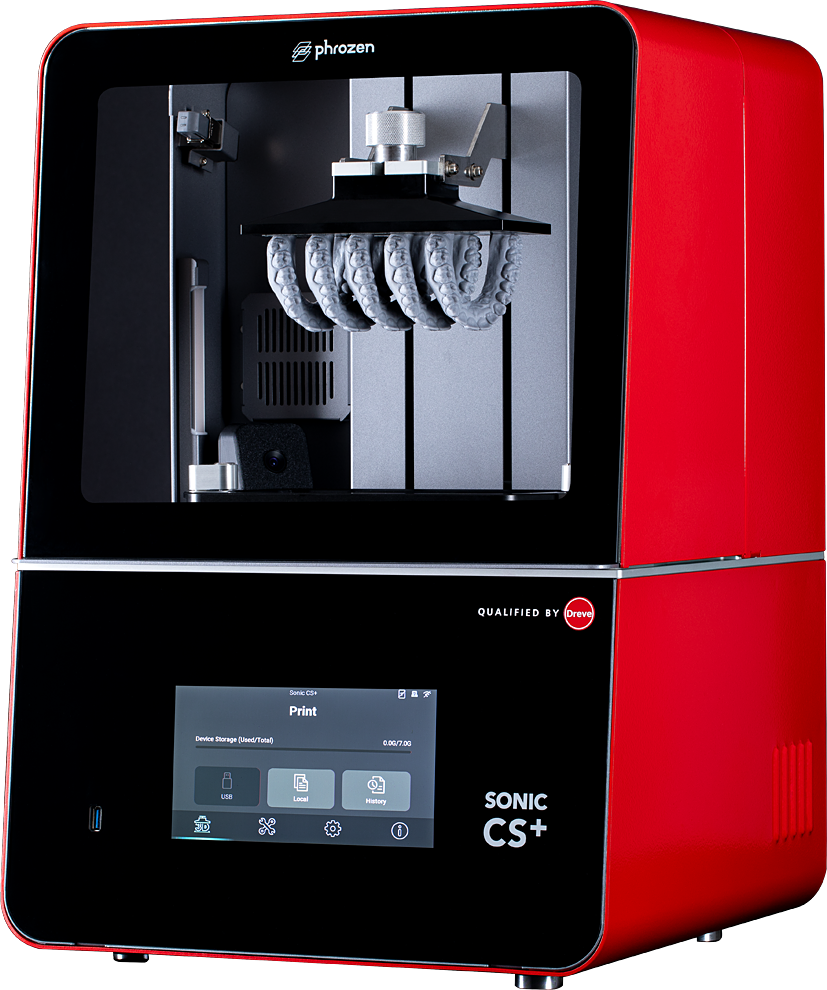

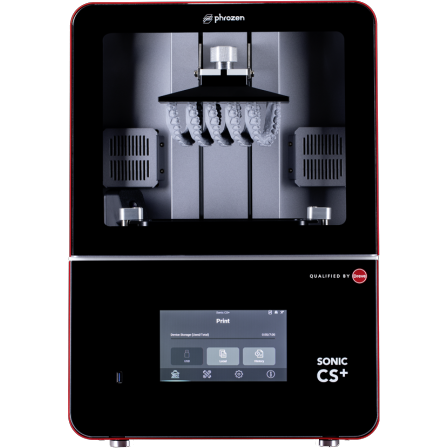

New to the Dreve family of digital products: The Phrozen Sonic CS+ 3D printer, qualified by Dreve.

This compact LCD desktop printer offers 22 micron resolution and an innovative 385nm LED light source to deliver high light intensity for fast build times.

The important stuff:

  • Build volume (standard tray): 74mm x 168mm x 185mm
  • Build volume (mini tray): 75mm x 75mm x 185mm
  • Wavelength: 385nm
  • Light intensity: 5mW/cm²
  • Resolution: 22 microns
  • Layer thickness: 0.01mm - 0.30mm

Features:

  • High light intensity provides short build times
  • Internal webcam monitoring during printing
  • Web-based control and monitoring
  • Compatible with the Dreve FotoDent® resin line
  • User-friendly wear parts replacement
  • US-based service and support

What does qualified by Dreve mean?

  • Build plate is stainless steel which offers better adhesion – The standard plate can get deep scratches when removing the printed parts
  • Print profiles thoroughly adjusted by our process development team for FotoDent resins.
  • Software improvements for intuitive operation – was able to reduce the number of clicks to less than 20 to get the printer started.
  • Dreve measures the light intensity of each LED in the array in mW/cm^2, then set the light intensity percentage according to the average across the array to correlate with the 2.75 mW/cm^2 intensity setting in profiles Dreve has developed to ensure total accuracy across the entire array (meaning that some lights are brighter then others so we have to dim some and brighten others to ensure no over curing or under curing occurs)
  • Direct support from Dreve with any problems or questions regarding the printer.
    • Local support in America vs support by Phrozen who is located in Taiwan.
    • We can also do the calibration of the unit if ordering the Dreve qualified unit.
